Product Details
＋

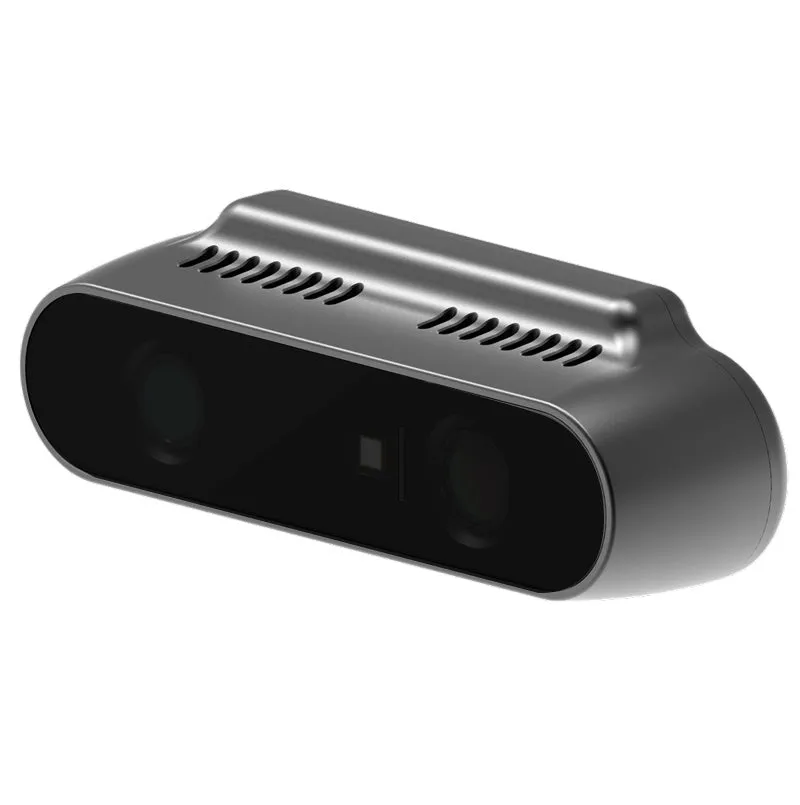

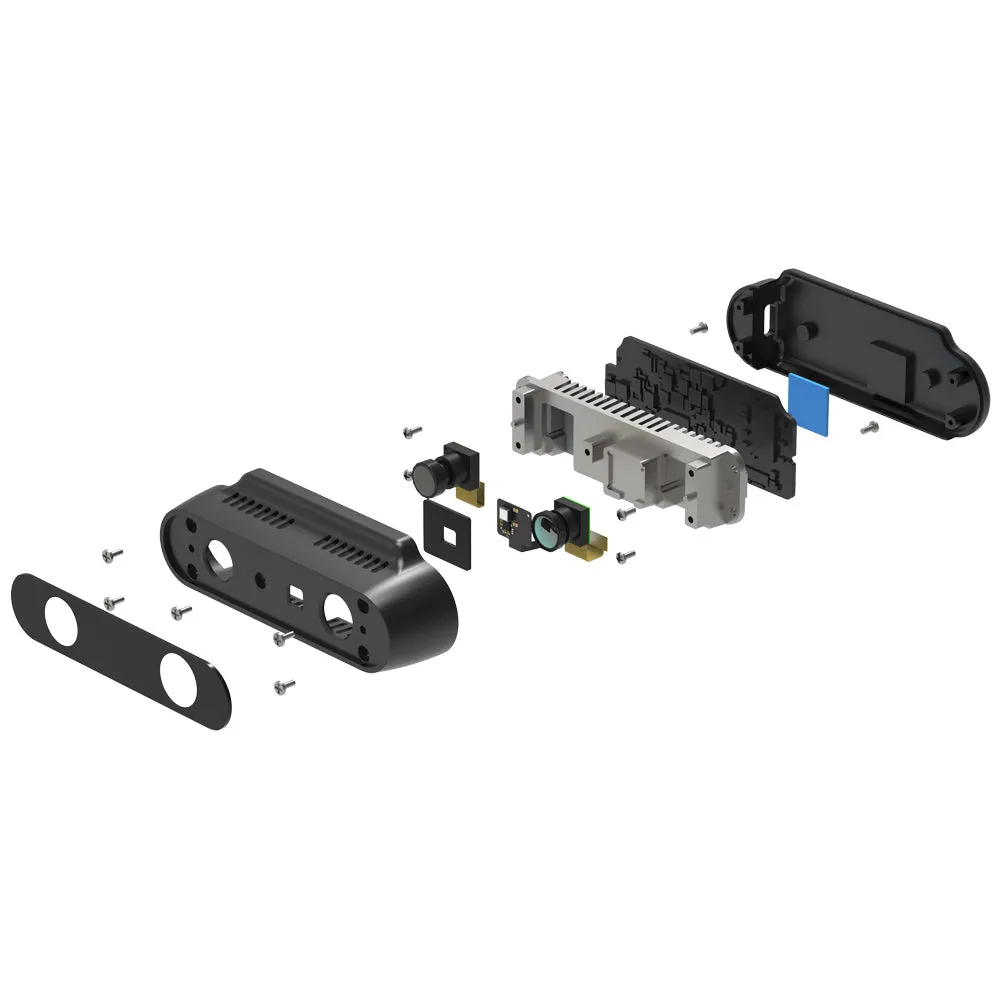

The Synexens 3D Safe Guarding Privacy Depth Sensor CS30 is equipped with a 640 x 480 ToF depth camera. Utilizing advanced Time-of-Flight (ToF) technology, it captures precise 3D spatial information with a wide Field of View (FOV) and synchronized depth imaging. The CS30 features a durable, privacy-protecting design with selectively applied black cover glass, making it ideal for secure, professional applications.
Key Features

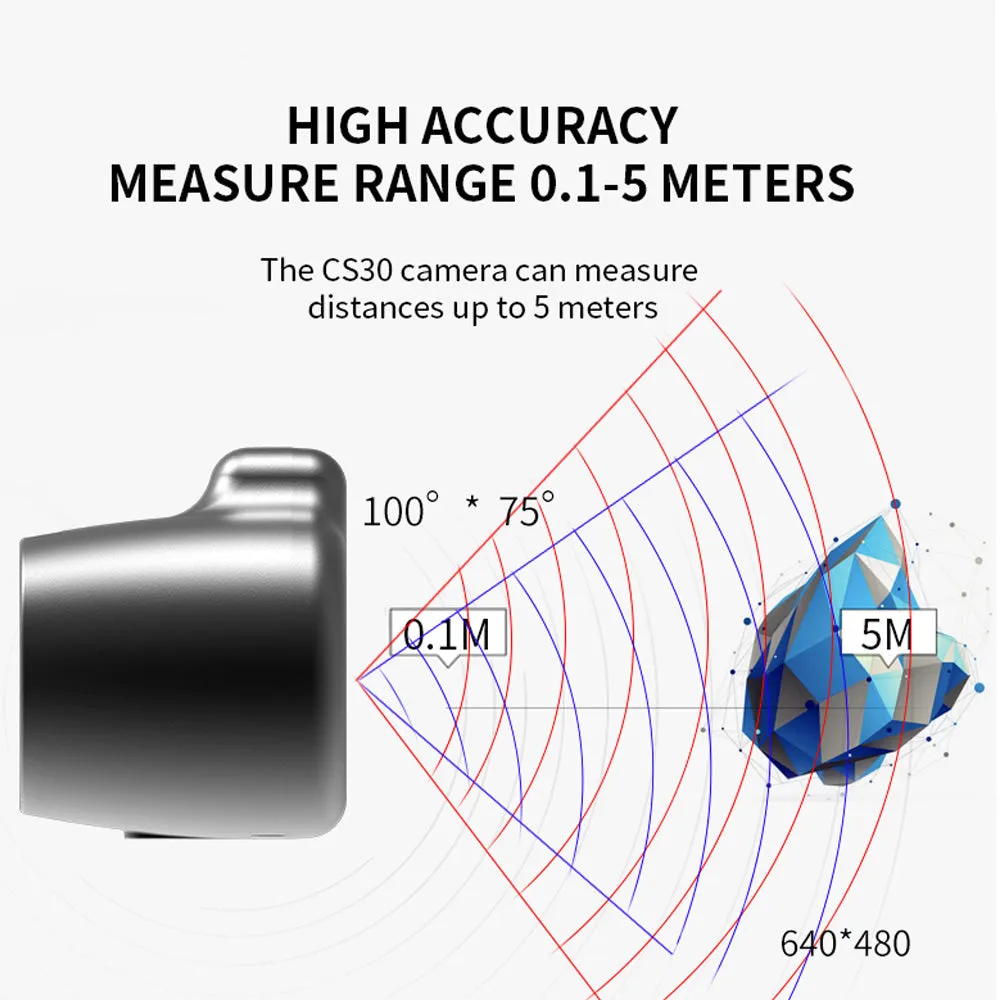

- High Precision & Accuracy: Measures distances from 0.1 to 5 meters with 90% reflectance.
- Wide Dynamic Range: Reliable performance in varied lighting conditions.
- Depth Synchronization: Provides accurate depth data for precise mapping.
- Adjustable Frame Rate & Range: Adapts to diverse operational needs.

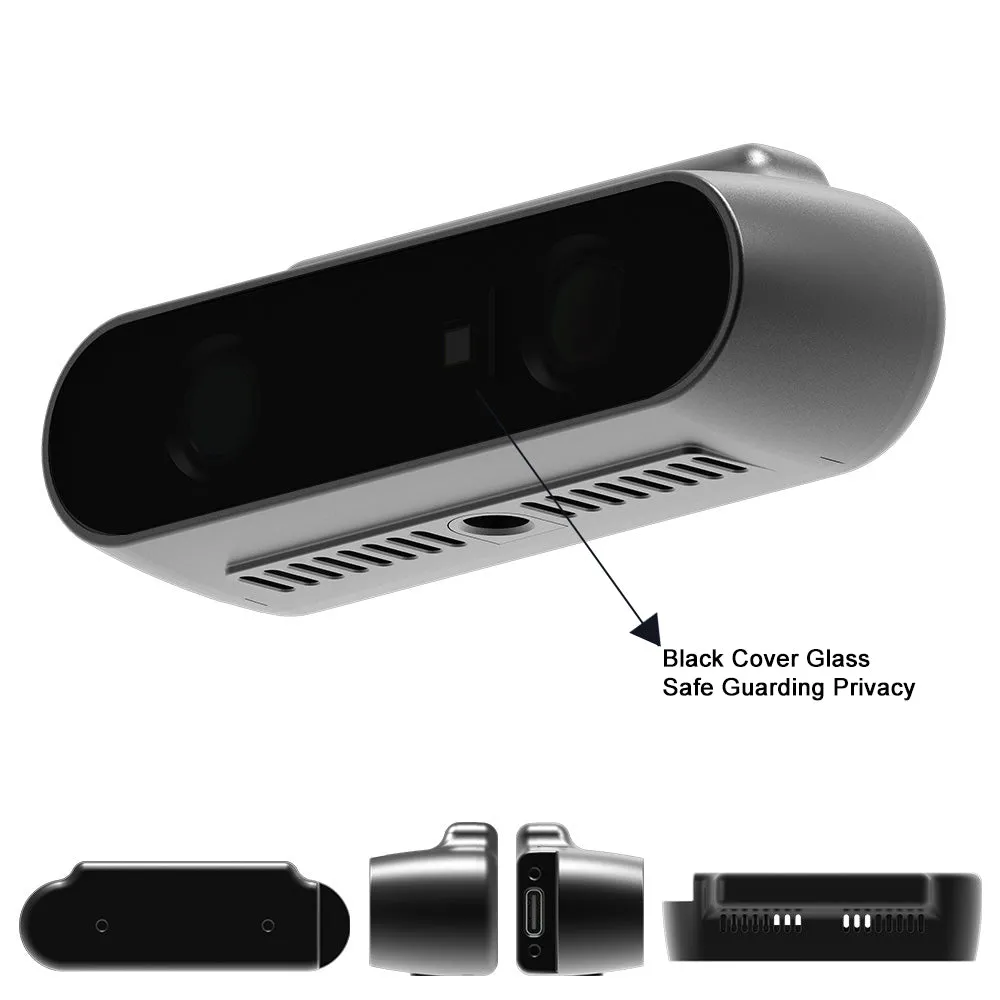

- Privacy Shield: Black cover glass enhances privacy while maintaining image clarity.
Applicable Scenarios
- Robotic Obstacle Avoidance
- Industrial Vision Applications
- Volume Measurement
- Liveness Detection & Security Monitoring
- Somatosensory Interaction
- 3D Modeling & Scanning

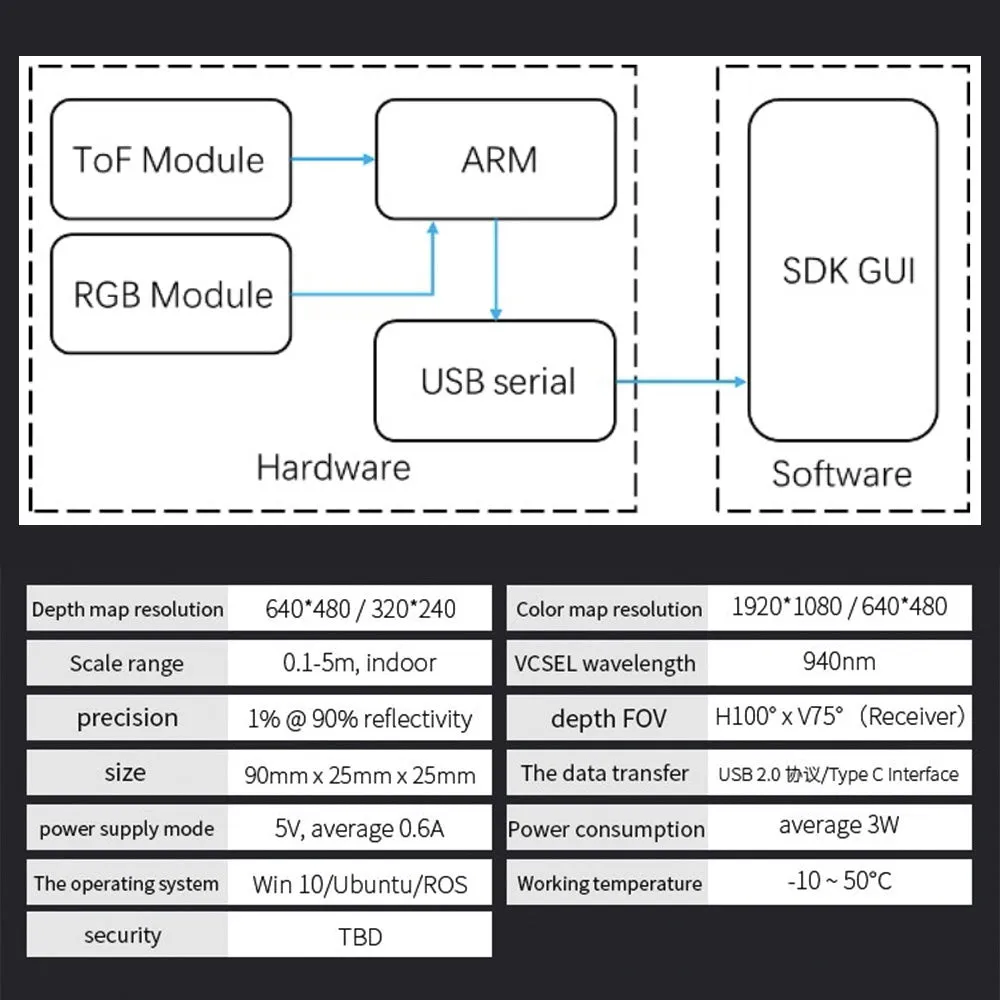

Technical Specifications
| Parameter | Depth Image | Color Image | RGBD Fusion |
|---|---|---|---|
| Resolution | 640 x 480 / 320 x 240 | - | - |
| FOV | H100° x V75° |
- |
- |
Basic Parameters
- Working Distance: 0.1-5m (indoor)
- VCSEL Wavelength: 940nm
- Precision: 0.1~0.5m: ±2.5cm, 0.5~5m: ±1% @ 90% reflectivity

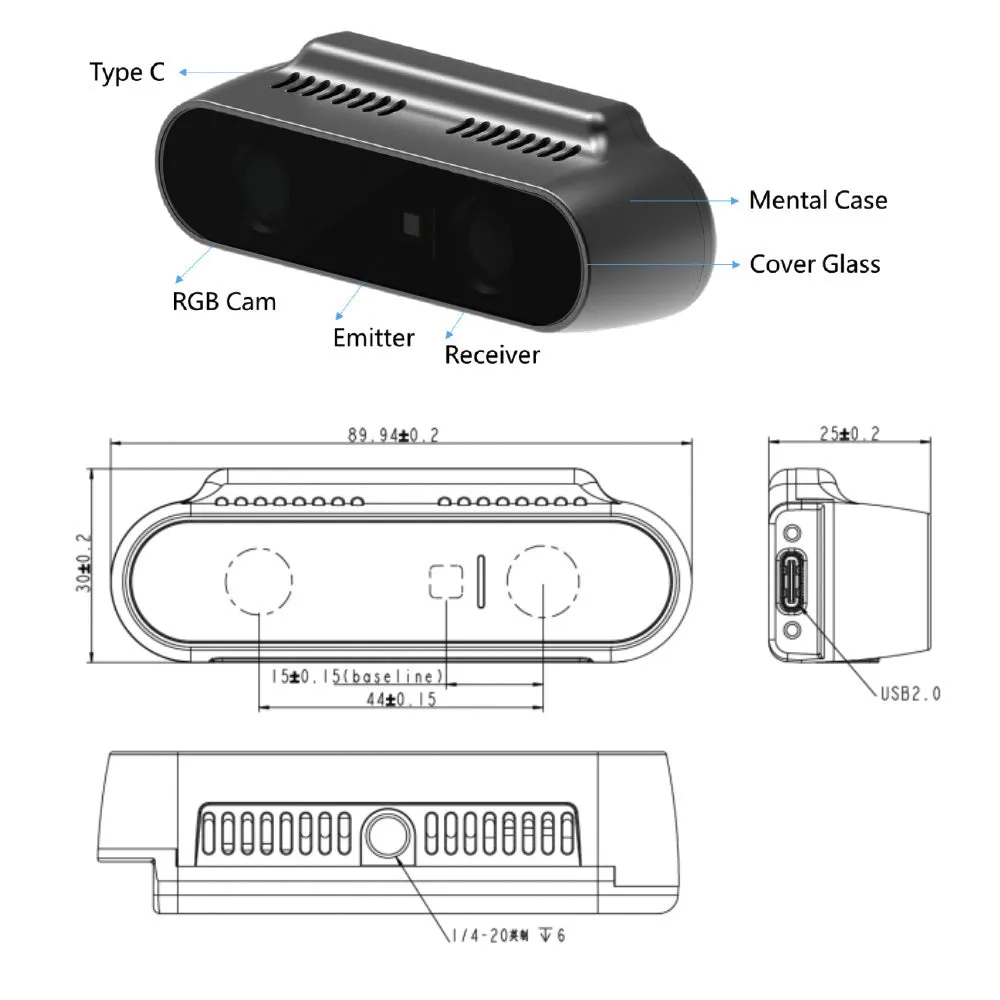

- Product Dimensions: 90mm x 25mm x 25mm

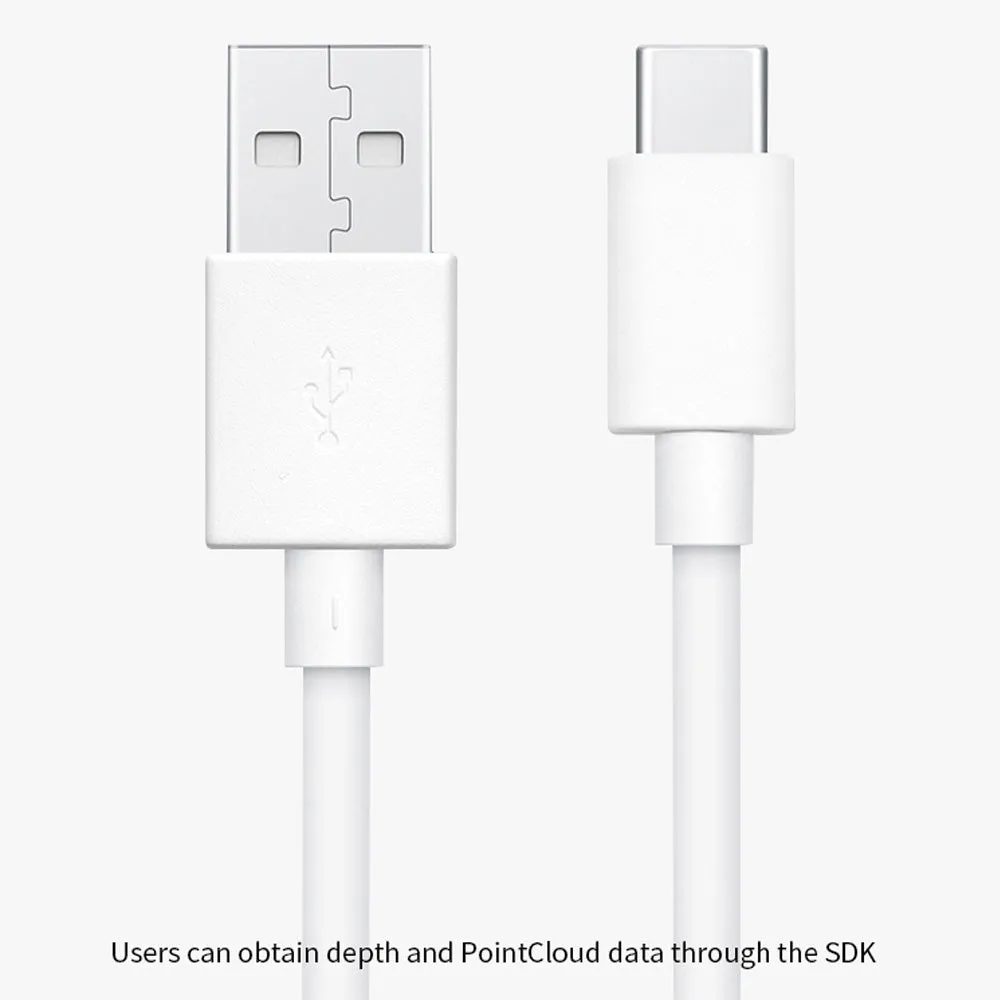

- Data Transmission: USB 2.0, Type-C Interface
- Power Supply: 5V, avg. 0.6A, Power Consumption: avg. 3W
- Operating Temperature: -10 ~ 50℃
- Safety Certification: Laser Class 1
