5 Axis Robot Arm with Guide Rails Suction Cup RC Robotics Manipulator for Arduino and AI Python ESP32 Programmable Robot DIY Kit
Product Description

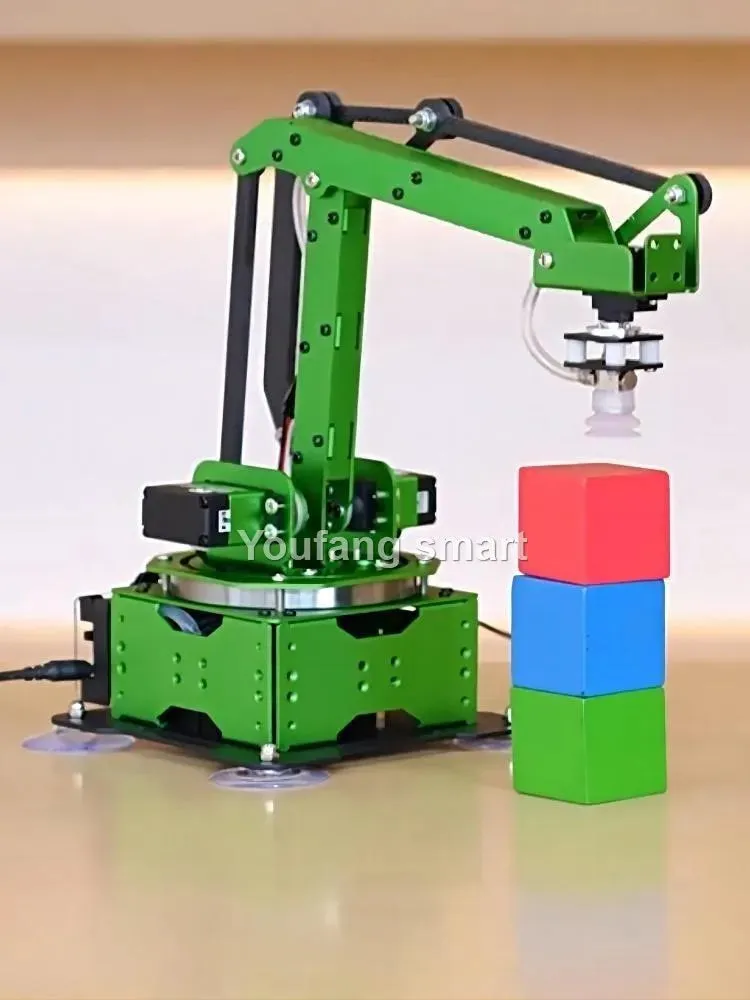

MaxArm is an open-source robotic arm powered by ESP32 microcontroller. The linkage mechanism designed body are equipped with high-quality bus servos and suction nozzle. Using inverse kinematics technology, MaxArm can execute variety of tasks such as object sorting, picking, transporting and stacking.

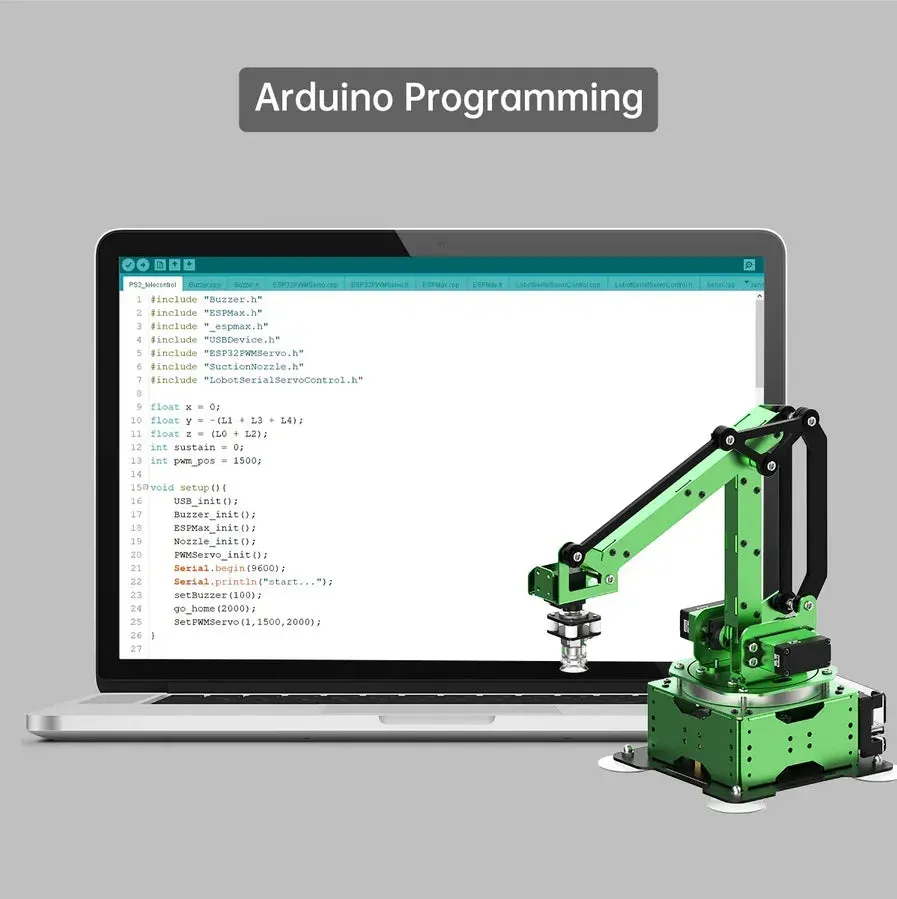

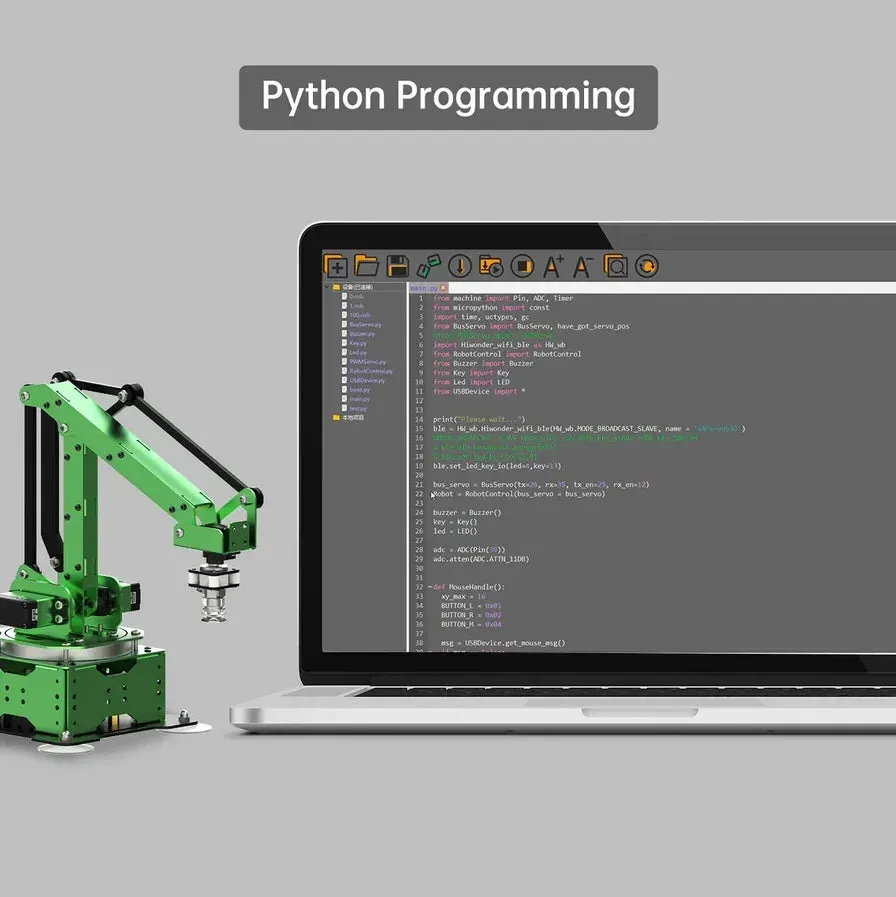

Supporting Python and Arduino programming and Wi-Fi and Bluetooth communications, MaxArm can also be controlled by APP, PC software, wireless remote controller and mouse control. It also supports variety of sensors to turn your creative AI ideas into reality!
Title: MaxArm Intelligent bus steering ESP32 Programmable Python open source
Product parameter
Product size: Length 271mm* Width 161mm* Height 252mm
Weight: 1.1kg
Body material: metal and glass fiber board
Manipulator degree of freedom: 4 1
Power supply: 12V 5A DC adapter
Main control system: ESP32 open source controller

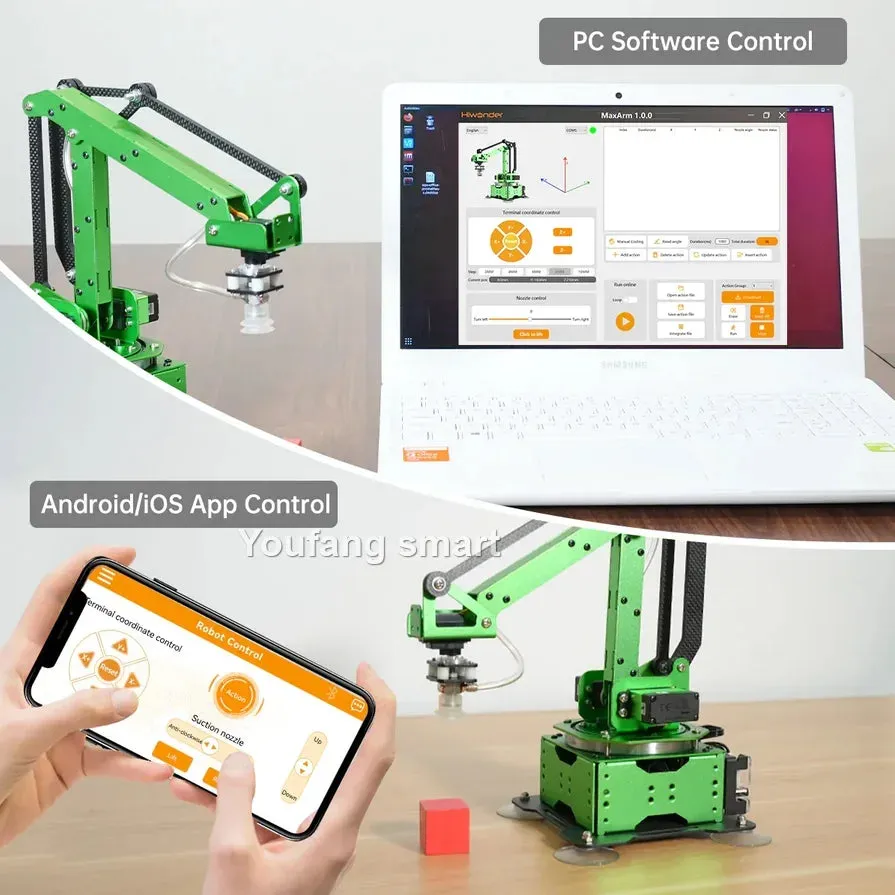

Software: PC and iOS/ Android mobile APP
Communication mode: Wi-Fi, Bluetooth
Steering gear type: HTS-35H intelligent bus steering gear and LFD-01M micro steering gear

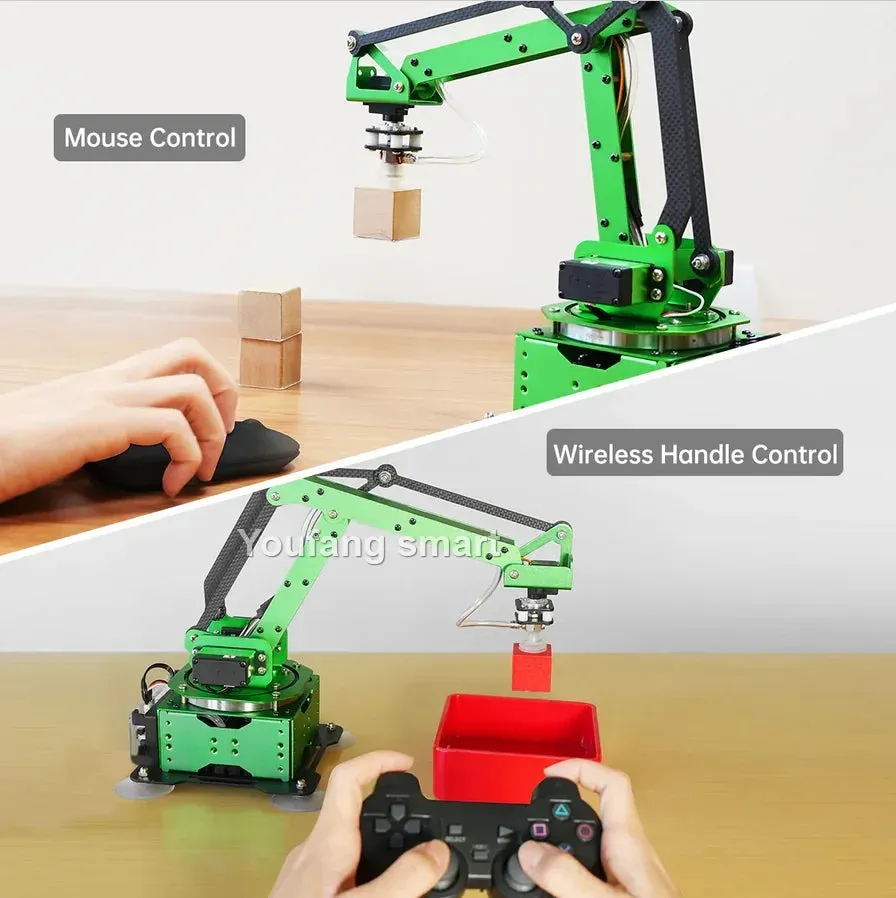

Control mode: Computer control/mobile phone control /PS2 controller control/mouse control
Delivery size: Length 298mm* Width 210mm* Height 175mm
Overall weight (including packaging): about 1.8kg
Shipping list:

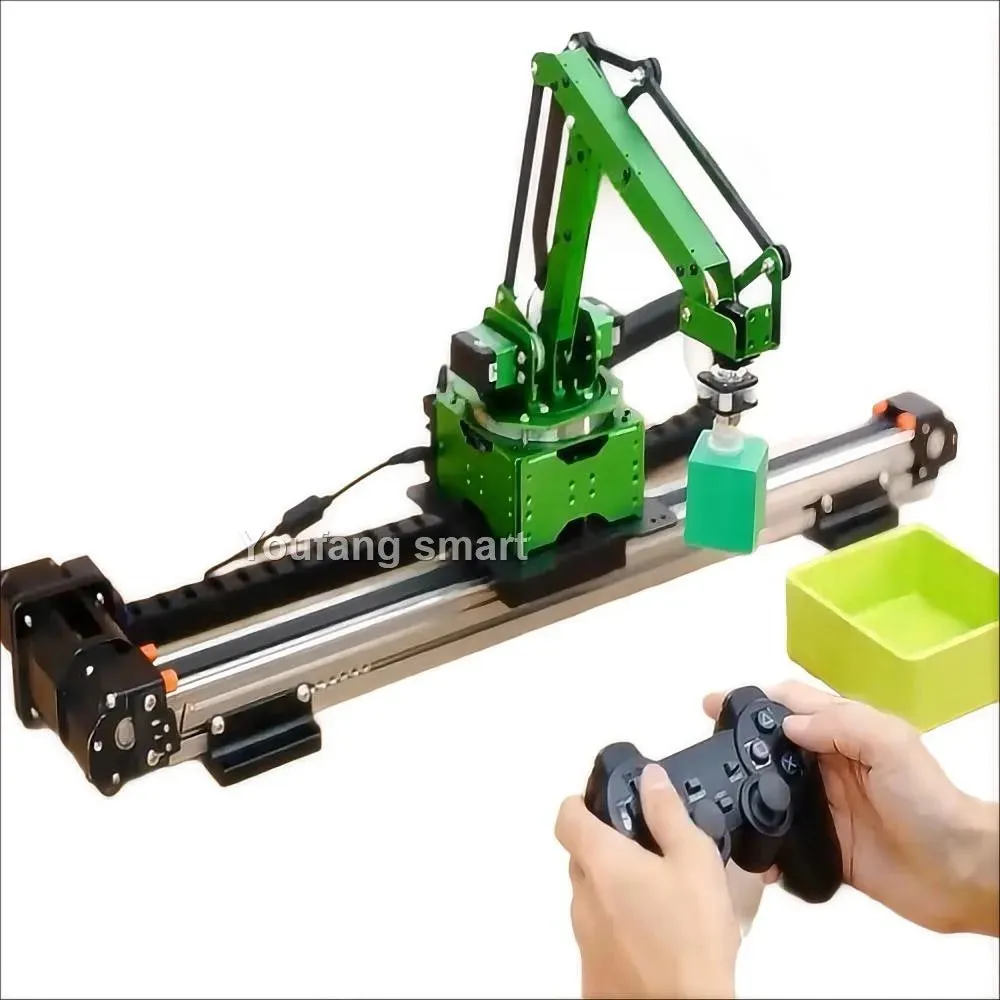

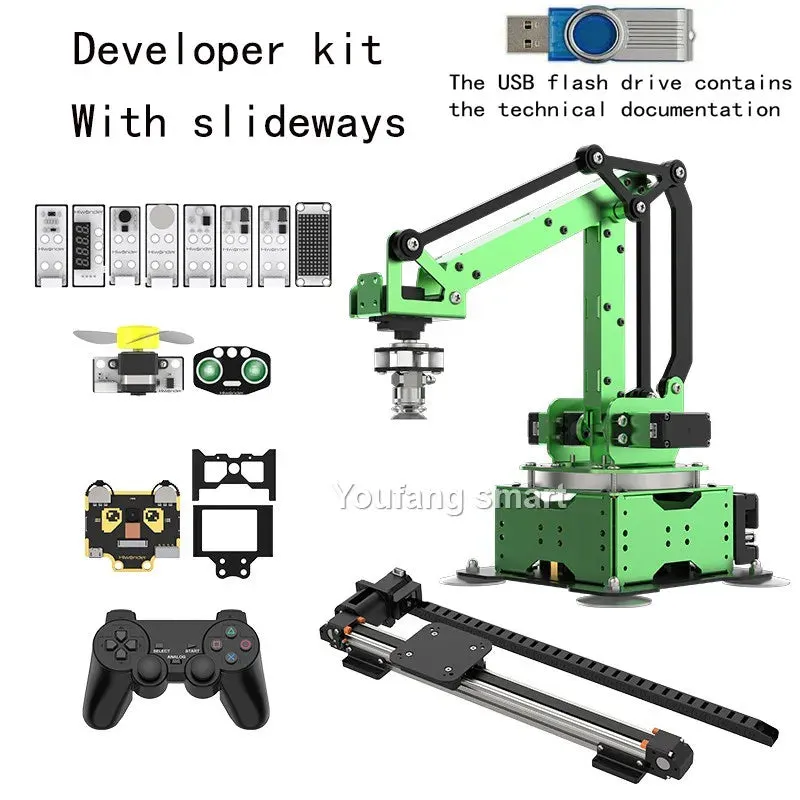

MaxArm Professional Developer kit list(Here is link product sale ): Vision arm (assembled), suction cup accessories, color sensor, digital tube module, little phantom Bear vision module (including metal housing), slide rail connection bracket, 12V 5A power adapter, Phillips screwdriver, touch sensor, infrared sensor *2, fan module, 4*4cm color block, PS2 wireless handle, sound sensor, 4PIN cable *3(30cm), dot-matrix module, electric slide, USB data cable, luminous ultrasonic, light sensor, screw and nut accessory kit, 4PIN cable *3(50cm)
If you would like to purchase a robotic arm without rails, please click on the link below(3 version without rails)：
MaxArm Starter kit list: Vision arm (assembled), 12V 5A power adapter, 4*4cm color block, USB cable, suction cup accessories, Phillips screwdriver
MaxArm Standard kit list: Vision robot arm (assembled), suction cup accessories, 12V 5A power adapter, Phillips screwdriver, 4*4cm color block, PS2 wireless handle, USB data cable, luminous ultrasound
Color sensor, nixie module, touch sensor, infrared sensor *2, Sound sensor, 4PIN wire *3(30cm), light sensor, screw and nut accessories
MaxArm Advanced kit List: Vision arm (assembled), suction cup accessories, color sensor, digital tube module, small phantom Bear vision module (including metal shell), 12V 5A power adapter, Phillips screwdriver, touch sensor, infrared sensor *2, fan module, 4*4cm color block, PS2 wireless controller, sound sensor, 4PIN cable *3(30cm), dot-matrix module, USB data cable, luminous ultrasonic, light sensor, screw and nut accessory kit, 4PIN cable *3(50cm)
Note: If you choose the option 'with slide rail', the order will be sent in 2 packages! So there will be 2 waybill numbers!
Note:
- Assembly is needed, providing assembly inst
